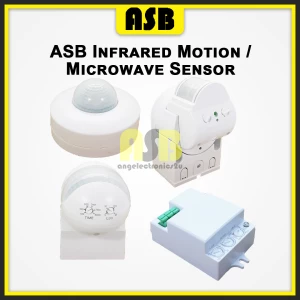

Model : ST05B / ST11 / ST08 / ST701E

Voltage : 220-240V/AC

Frequency : 50/60Hz

Ambient Light : <3-2000LUX ( adjustable )

Detection Motion Speed : 0.6 - 1.5m/s

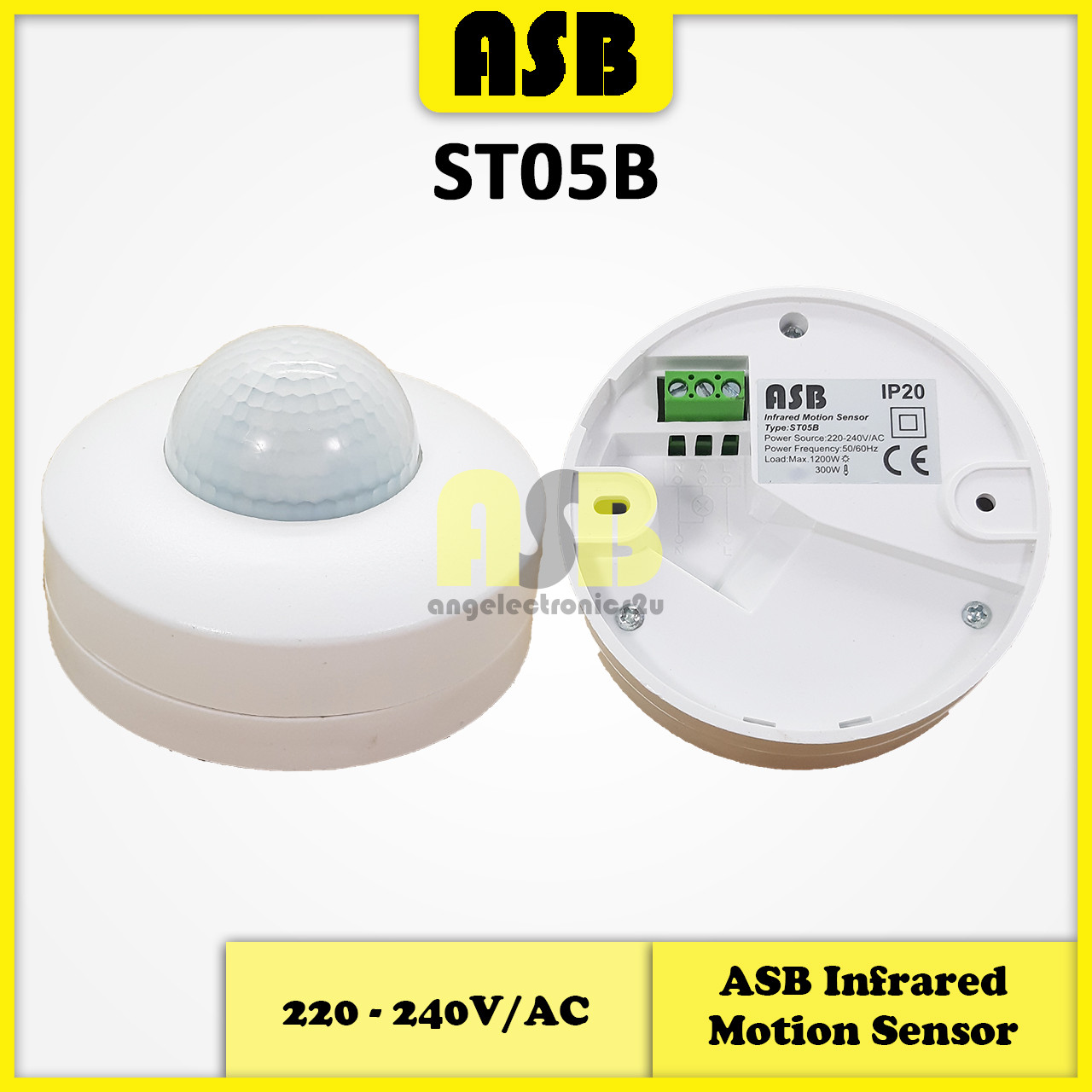

Model : ST05B

Detection Range : 360°

Rated Load : 1200W / 800W / 300W / 200W

Detection Distance : 12M ( Max )

Time Delay : 10sec ± 3sec ( Min ) | 15min ± 2min ( Max )

Installation Height : 2.2 - 4M

Ingress Protection Ratings : IP20

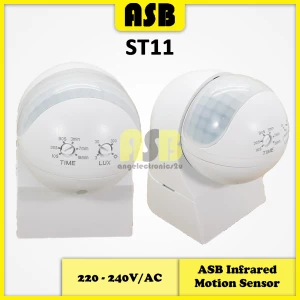

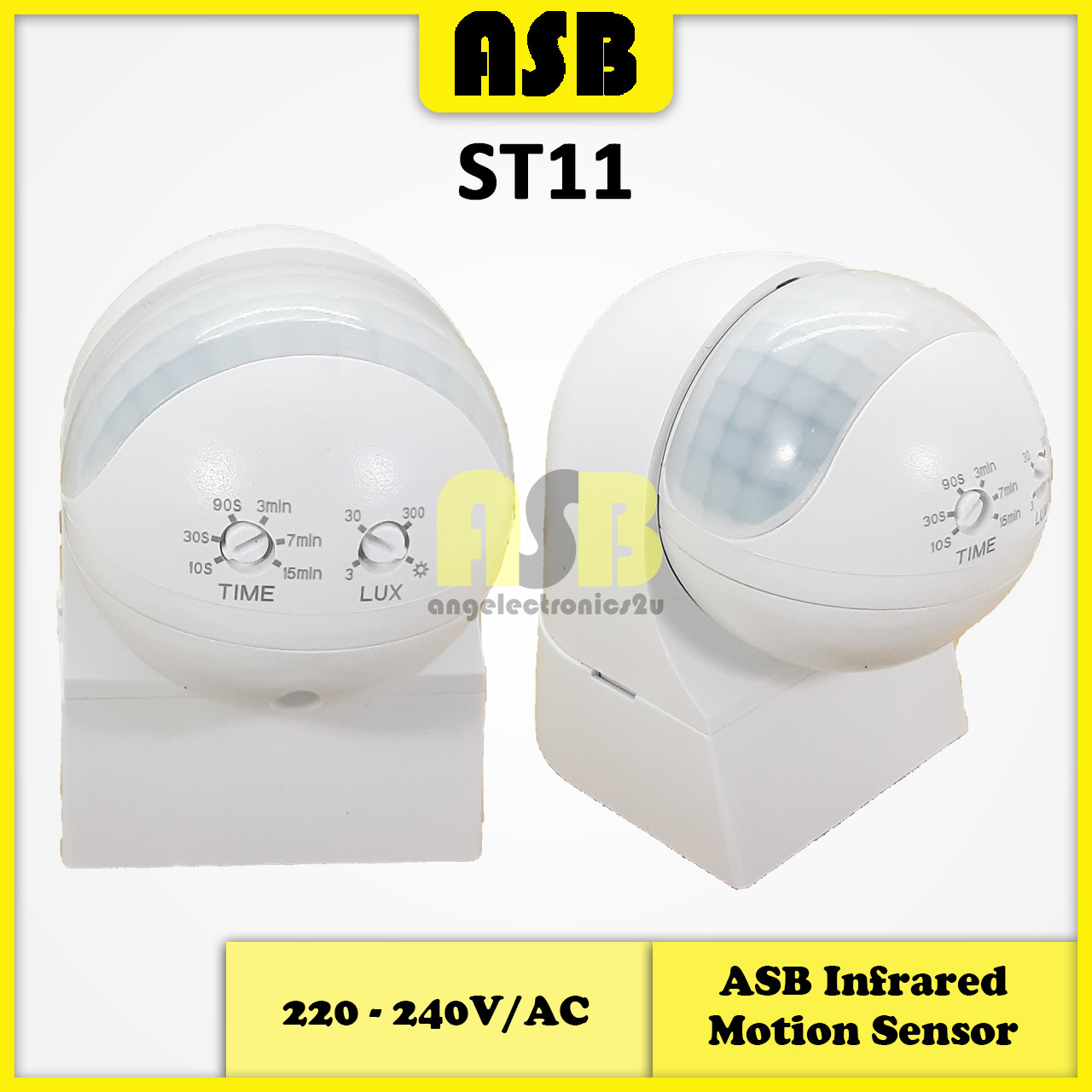

Model : ST11

Detection Range : 180°

Rated Load : 800W / 500W / 400W / 200W

Detection Distance : 12M ( Max )

Time Delay : 10sec ± 3sec ( Min ) | 15min ± 2min ( Max )

Installation Height : 1.8 - 2.5M

Ingress Protection Ratings : IP44

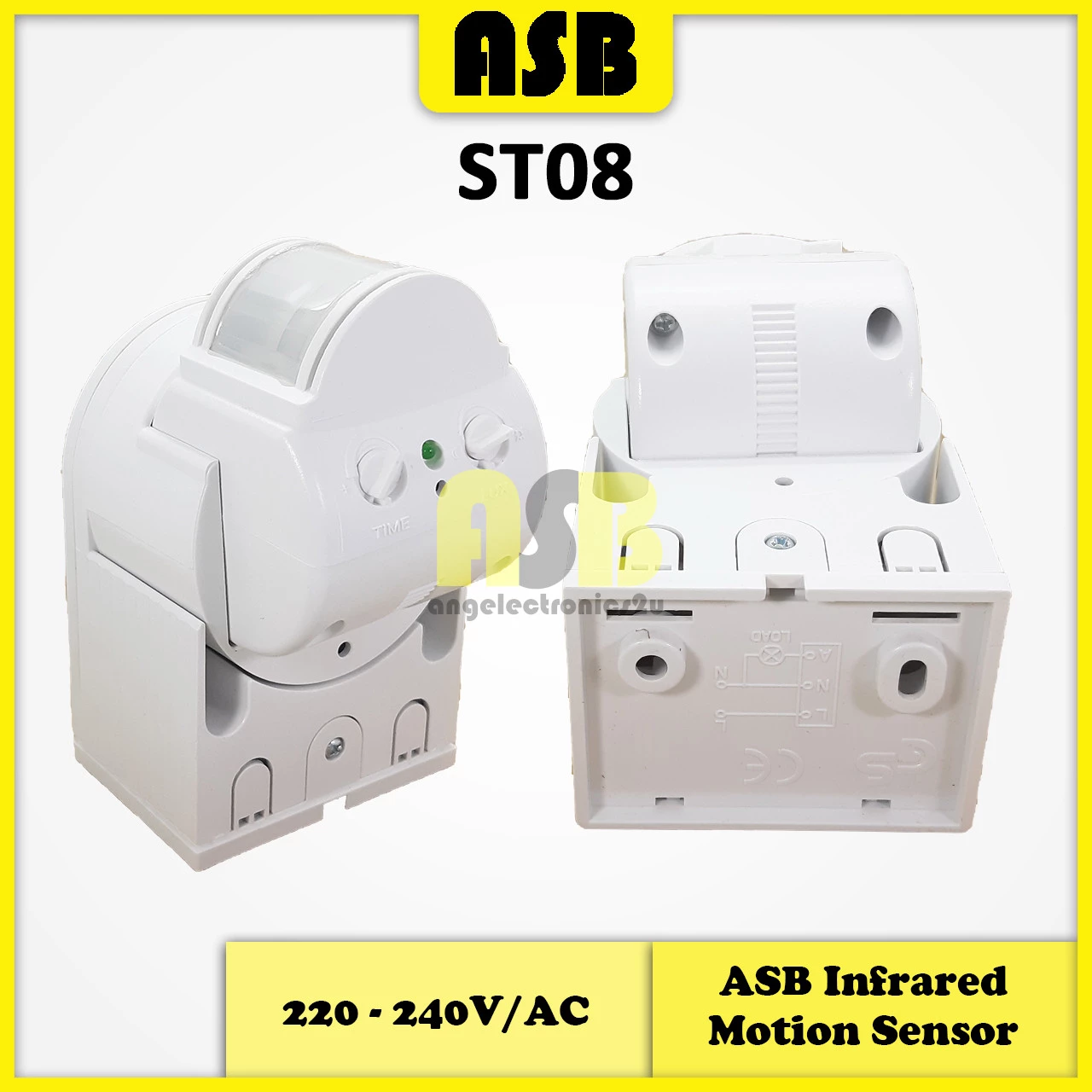

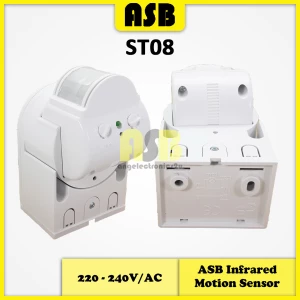

Model : ST08

Detection Range : 180°

Rated Load : 1200W / 800W / 300W / 200W

Detection Distance : 12M ( Max )

Time Delay : 10sec ± 3sec ( Min ) | 7min ± 2min ( Max )

Installation Height : 1.8 - 2.5M

Ingress Protection Ratings : IP44

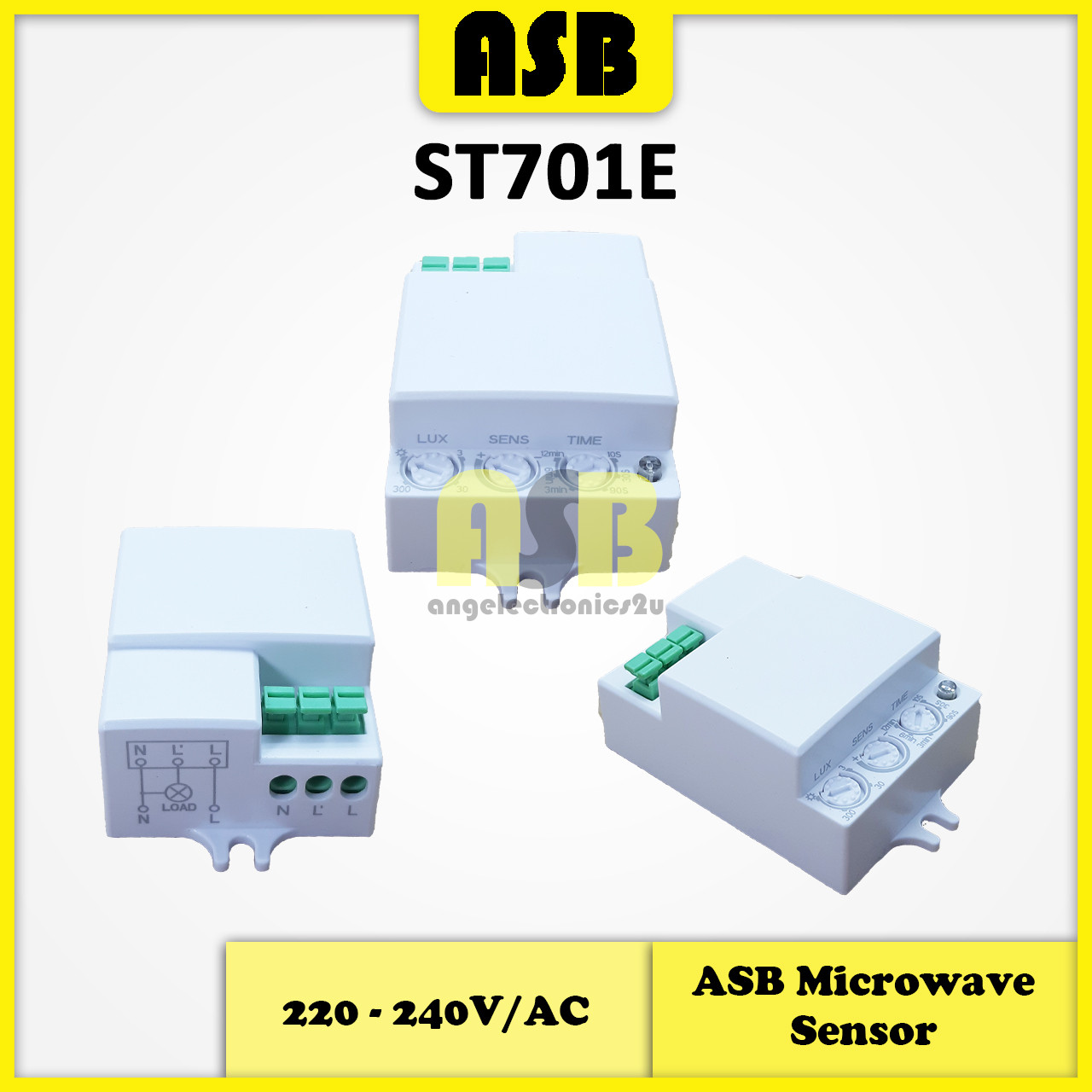

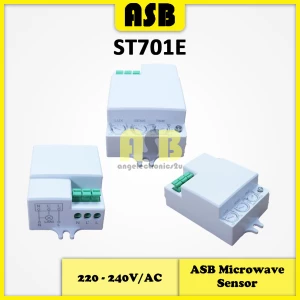

Model : ST701E

Detection Range : 180°

Rated Load : 1200W / 300W

Detection Distance : Wall 5 - 15M ( adjustable ) | Ceiling 1 - 8M Radius ( adjustable )

Time Delay : 10sec ± 3sec ( Min ) | 12min ± 1min ( Max )

Installation Height : Wall 1.5 - 3.5M | Ceiling 2 - 8M

Ingress Protection Ratings : IP20
